View dimensions in 3D: PDF
|

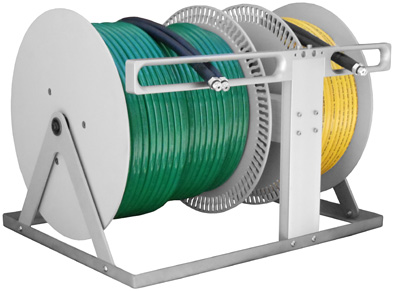

6021 Dual Electric Rewind Rescue Reel
As Shown:
Bottom Rewind Guide
Left Side: 200ft. Twinline Hydraulic Hose
Right Side: 100ft. Twinline Hydraulic Hose
Capacity
| Side One: |
Side Two: |
| 200ft. Twinline Hydraulic Hose |
100ft. Twinline Hydraulic Hose |
| 200ft. 10/3 or 10/4 Electric Cable |
100ft. 10/3 or 10/4 Electric Cable |
| 280ft. Working Air |
150ft. 12/3 Electric Cable |
| 400ft. Breathing Air |
140ft. Working Air |
| |
200ft. Breathing Air |
Depth: 18 Inches
Width: 22 7/8 Inches
Height: 16 3/4 Inches
Empty Weight: 67 Pounds
Average Amp. Draw Per Motor: 3.5 Amp.
Working Pressure: 10,500 PSI
|
|
|
